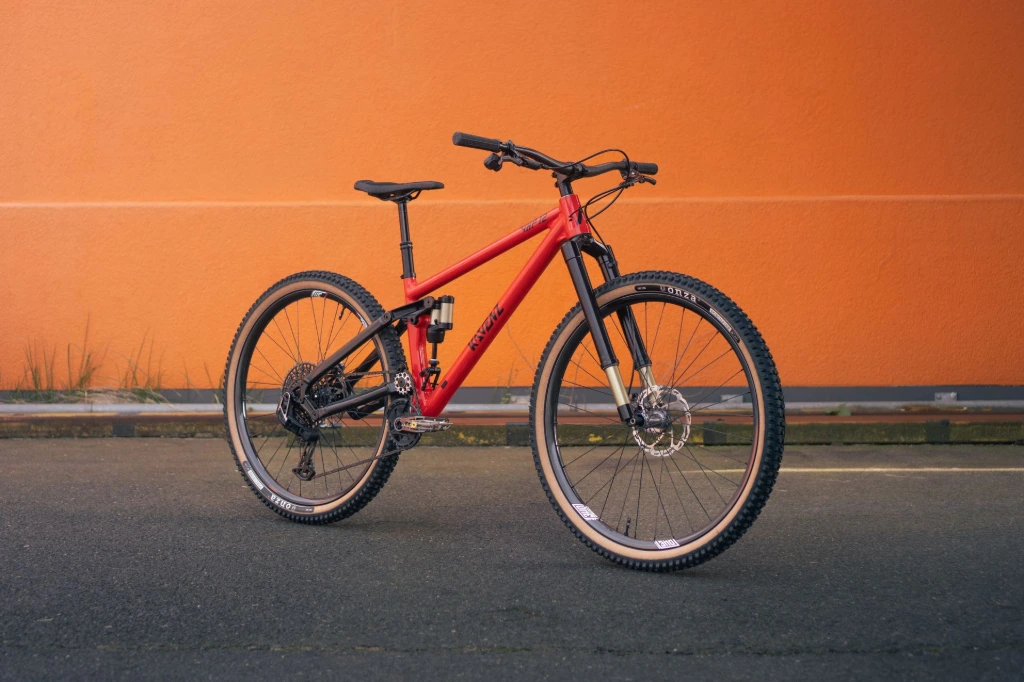

VHP 12 - The Fastest XC Descender
What makes VHP12 so unique? It has all the genes of VHP16, but only 120mm of travel. It offers more traction on steep climbs than other xc bikes and almost feels like a mini-DH bike on the descents. What´s the downsides? Well, a bit more drag in the drive train this bike is for super-fast XC laps not for long distance marathon.
If you love cross country, uphills and long mountain rides,but still would like to have super fast and stable on the descends this is the best choice you can make.
VHP12 29 Geometry
| Size | S | M | L | XL | 2XL | 3XL |
|---|---|---|---|---|---|---|
| A: Reach | 455 | 475 | 495 | 508 | 528 | 548 |
| B: TT Length | 582 | 602 | 622 | 635 | 655 | 675 |
| C: Stack | 627 | 627 | 627 | 634 | 634 | 634 |
| D: Seattube Effective | 78,9 | 78,9 | 78,9 | 78,9 | 78,9 | 78,9 |
| E: Saddle Height Effective ST | 750 | 750 | 750 | 750 | 750 | 750 |
| F: Seat Tube Length | 420 | 420 | 450 | 450 | 480 | 480 |
| G: Head Tube Length | 110 | 110 | 110 | 125 | 125 | 125 |
| H: Head Tube Angle | 65,4 | 65,4 | 65,4 | 65,4 | 65,4 | 65,4 |
| I: Based on ACT | 547 | 547 | 547 | 547 | 547 | 547 |
| J: Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| K: Chain Stay Length* | 425 | 425 | 435 | 435 | 445 | 445 |
| *Based on Drop Out | 0 | 0 | 10 | 10 | 20 | 20 |
| L: Wheelbase* | 1175 | 1195 | 1225 | 1245 | 1275 | 1295 |
| M: Bottom Braket Drop* | 34 | 34 | 34 | 34 | 34 | 34 |
| Actual ST Angle | 76,9 | 76,9 | 76,9 | 76,9 | 76,9 | 76,9 |
| Seattube Offset at BB | 44 | 44 | 44 | 44 | 44 | 44 |
| Estimated BB Height 29 | 332 | 332 | 332 | 332 | 332 | 332 |
| Stand Over Height | 783 | 783 | 783 | 783 | 783 | 783 |
| *Plus 11mm in SAG (CS length can be adjusted by changing the dropouts) |
specs
| Specifications | |
|---|---|
| Size Options | S, M, L, XL, 2XL, 3XL (Semi Custom Available) |
| Rear Travel | 120mm (Convertible to 140, 150, 160 or 180mm*) |
| Shock | Trunnion 185x47,5 (Mounting Hardware: 22x8mm) |
| Fork Compatibility | 130-140mm (Crown to Axle: 547mm) |
| Headset | ZS44/28.6 | ZS56/40 (for Tapered Forks) |
| Rear Brake | IS 2000 (Compatible with 160-220mm Discs) |
| Rear Hub/Axle | 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread |
| Bottom Bracket | 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide) |
| Chainline Idler Pulley | Adjustable 50.5-52-53.5** |
| Tire Clearance | 29" x 2.6 |
| Seattube | 31.6mm Inside Diameter / 35mm Outside Diameter |
| Seatpost | 31.6mm with Internal Seatpost Cable Routing |
| Seatpost MAX Insert | 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm |
| Bottle | 750ml (Sideload Bottle Cage Only) |
| Idler Pulley | 16T N/W SS (Durable and Efficient) |
| Bearings | One Size 15x28x7 Max Type Black Oxide Bearings |
| Weight | 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M) |
| Frame Material | Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075 |
| Axles Material | Titanium Grade 5 (Eliminates Hex Wear) |
| *Can be achieved by replacing the shock mount and/or shock. | |
| **Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainline |
