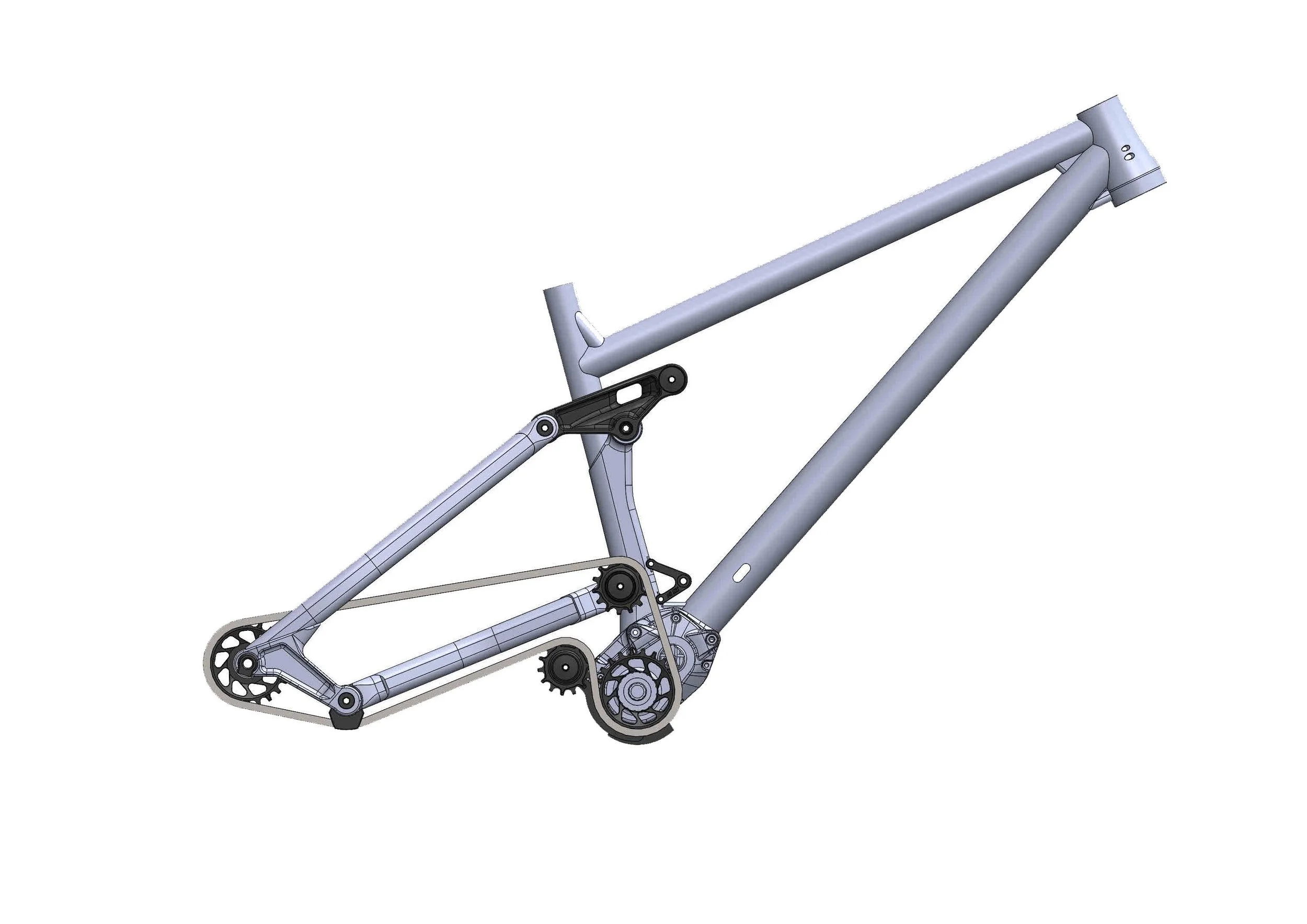

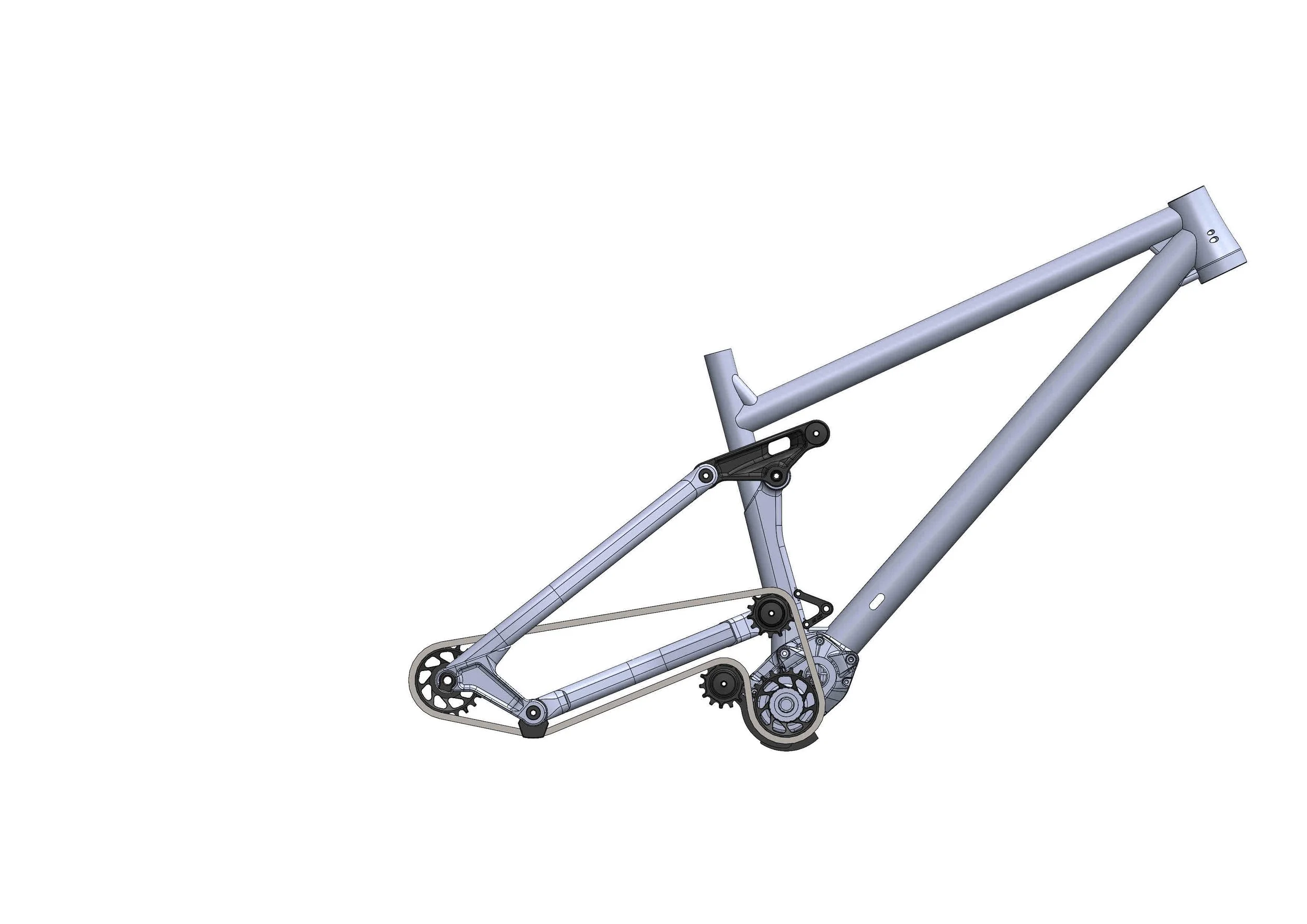

VHP G - The Gevolution Continuous

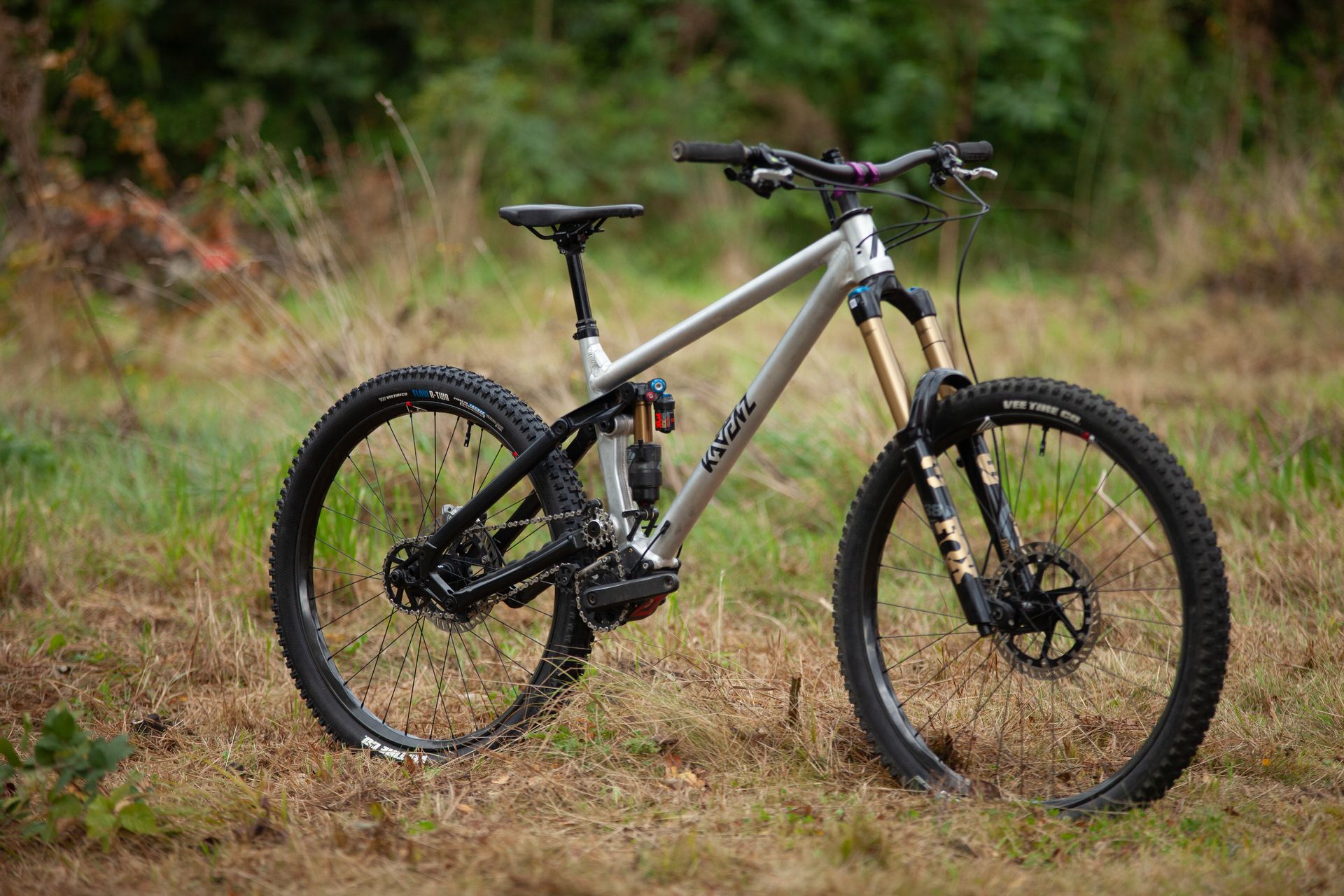

The fastest gearbox bike got even better! We’re thrilled to show you the second evolution of the Kavenz VHP G, and it’s packed with innovations that will elevate your ride to new heights. As a gearbox bike fully compatible with both Pinion and Effigear Mimic systems, the VHP G continues to lead the way in mountain biking technology.
With full compatibility with Pinion P-, C- and T-line and Effigear Mimic systems, the Kavenz VHP G is designed for riders who demand the best in gearbox technology.
Geometry Table VHP G2 16
| Size | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|
| A: Reach | 440 | 460 | 480 | 500 | 520 | 540 |
| B: TT Length | 578 | 598 | 618 | 638 | 658 | 678 |
| C: Stack | 639 | 639 | 639 | 652 | 652 | 652 |
| E: Seattube Effective | 77,5 | 77,5 | 77,5 | 77,5 | 77,5 | 77,5 |
| E: Saddle Height Effective ST | 750 | 750 | 750 | 750 | 750 | 750 |
| Actual ST Angle | 75,5 | 75,5 | 75,5 | 75,5 | 75,5 | 75,5 |
| Seattube Offset at BB | 21 | 21 | 21 | 21 | 21 | 21 |
| F: Seat Tube Length | 400 | 420 | 450 | 450 | 480 | 480 |
| G: Head Tube Length | 110 | 110 | 110 | 125 | 125 | 125 |
| H: Head Tube Angle | 64 | 64 | 64 | 64 | 64 | 64 |
| I: Based on ACT | 581 | 581 | 581 | 581 | 581 | 581 |
| J: Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| K: Chain Stay Length* | 419 | 419 | 419 | 419 | 419 | 419 |
| L: Wheelbase | 1203 | 1223 | 1243 | 1263 | 1283 | 1303 |
| O: Bottom Bracket Drop | 34 | 34 | 34 | 34 | 34 | 34 |
| Estimated BB Height 29 | 343 | 343 | 343 | 343 | 343 | 343 |
| Stand Over Height | 783 | 783 | 783 | 783 | 783 | 783 |
specs
| Specifications | |
|---|---|
| Size Options | S, M, L, XL, 2XL, 3XL |
| Rear Travel | 120mm / 140mm / 160mm / 180mm |
| Shock | Trunnion 185/47,5 / 205x60 / 205x65 / 225x75 Mounting hardware: 22x8mm |
| Fork | 160-180 for VHP16 - Crown to Axle 567-591mm (Geometry is designed with 581 ATC) |
| Headset | ZS44/28.6 | ZS56/40 (for Tapered Forks) |
| Headtube | ZS 44/56 (110mm or 125mm) |
| Rear Brake | IS 2000 |
| Rear Hub/Axle | 12 - 148mm (BOOST) |
| Bottom Bracket | Pinion / Effigear Mimic Mount |

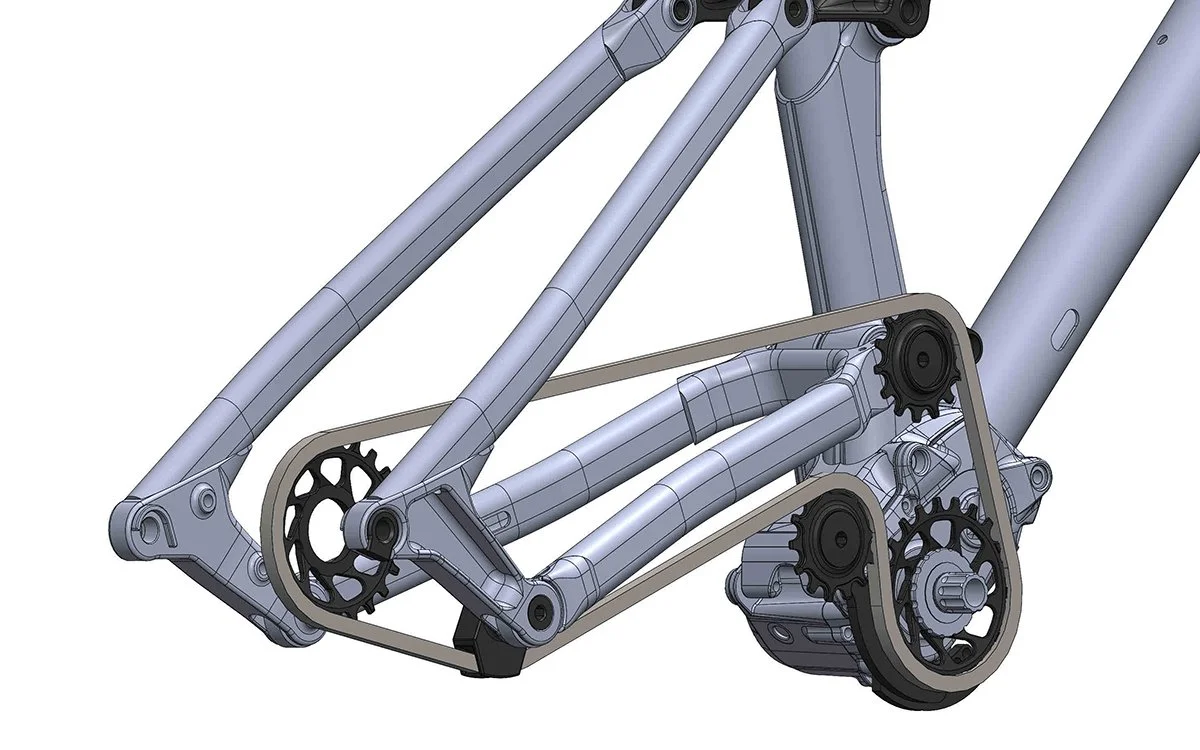

| Chainline Idler Pulley | Adjustable 50.5-52-53.5 |
| Tire Clearance | 27,5" x 2,6 (29" only with +20 Dropouts) |
| Seattube | 31.6 mm inside / 35 mm outside Length options: 420mm (M) / 450mm (L) / 480mm (XL) |
| Seatpost | 31.6 mm with internal seatpost cable routing |
| Seatpost MAX Insert | MAX insert: (420) 280mm / (450) 310mm / (480) 340mm MIN insert: 100mm |
| Bottle | 750ml (Sideload Bottle Cage Only) |
| Idler Pulley | 16T N/W |
| Bearings | 15x28x7 Max Type (S6902 LLU MAX)(one oversized bearing type throughout the whole frame) |
| Weight | 3,4 kg (RAW incl. hardware, w/o shock, Reach 460, Seat Tube 420) |
| Material | Frame - EN AW 7020 T6 heat-treated after welding Axles Titanium Grade 5 Bearings Stainless Steel |
| Finish and Color | RAW (Perfectly Imperfect) - Cerakote Black (Ultra Thin Ceramic Coating) -Powder Coated (RAL K5 Classic Color) |
